WHEEL OTR rim-WDC Wheels for Tractors

Fleet X OTR rims are manufactured per customer specific requirement.

Category OTR Wheels

Additional information

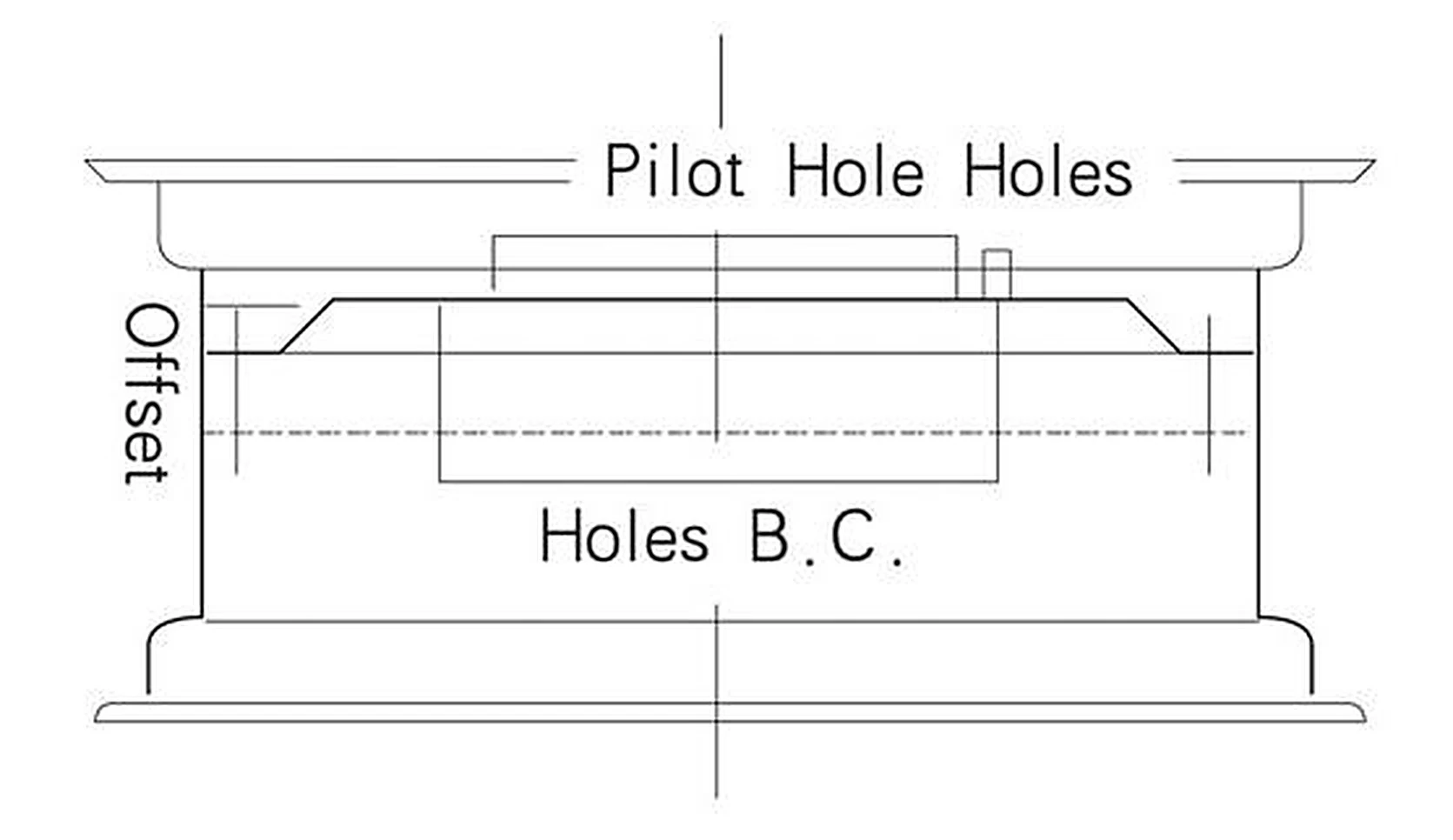

Item	Sizes	Suitable tire sizes	Attachment holes: quantity	Attachment holes: diameter	BCD	Centre hole diameter	Offset	Thickness: rim	Thickness: disc
1	W7X20	8.3-20	8	17	152	108.5		3.5	6
2	W7X20	8.3-20	8	17	152	110	80	3.5	6
3	W7X20	8.3-20	6	15	165	130	45	3.5	6
4	W7X20	8.3-20	6	17	180	141	45	3.5	6
5	W7X24	8.3-20	6	15	165	130	0	3.5	8
6	W7X24	8.3-24						3.5	8
7	W7X24	8.3-24	6	15	165	130	29	3.5	8
8	W8X24	9.50-24	6	20	165	120	120	4	8
9	W8X24	9.50-24	6	20	165	120	95	4	8
10	W9X20	11.2-20						3.5
11	W10X24	11.2-24	6	20	165	120	26	4	8
12	W10X24	11.2-24						4
13	W10X28	12.4-28	8	16.5	330	290.5		4	10
14	W10X28	12.4-28	8	19.8	275	220.5	84	4.5	8
15	W10X28	12.4-28	8	18.8	203.2	152.6	50.5	4	10
16	W10X32	12.4-32	8	20	200	150	96	4	8
17	W11X28	12.4-28						4
18	W12X24	13.6-24	8	16.5	330	290.5	6	4	9
19	W12X26	13.6-24(14.9-26)	10	23	335	281.2		4	10
20	W12X28	13.6-28						4
21	W12X30	14.9-30	8	19	203.2	150.1		5	10
22	W12X32	13.6-32	8	20	200	150		4	8
23	W12X32	13.6-32	8	20	200	150		4	8
24	W12X36	13.6-36	8	19.8	203.2	152.6	70	4	10
25	W12X38	13.6-38	8	19	203.2	150.1		5	10
26	W14LX24	15.0-24	8	32	210	145	116	5	14
27	W14LX30	16.9-30	8	19	203.2	150.1		5	10
28	W15LX38	16.9-38(18.4-38)	8	19	203.2	150.1	18	5	12
29	W15LX38	16.9-38	8	19	203.2	150.1		5	12
30	W16LX30	18.4-30	8	20	200	150	0	5	25
31	W16LX38	18.4-38						5
32	W7X20	8.3-20	8	17	152	110	80	3.5	6

Item	Sizes	Suitable tire sizes	Attachment holes: quantity	Attachment holes: diameter	BCD	Centre hole diameter	Offset	Thickness: rim	Thickness: disc
33	W7X20	8.3-20	6	20	190	146	46.5	4	6
34	W7X20	8.3-20	6	17	180	141	48	4	6
35	W7X20	8.3-20	6	15	160	130	45	3.5	6
36	W7X20	8.3-20	6	17	180	141	45	3.5	6
37	W7X20	8.3-24	6	15	165	130	0	4	8
38	W7X20	8.3-24	6	19	285	250	54.5	4	8
39	W7X20	8.3-24	6	17	180	141	16	4	8
40	W7X20	8.3-24	6	16	165	135	59	4	8
41	W7X20	8.3-24	6	15	165	130	29	4	8
42	W8X20	9.50-24	6	17	180	141	48	4	6
43	W8X24	9.50-24	6	20	165	120	120	4	6
44	W8X24	9.50-24	6	16	165	130	0	4	8
45	W8X24	9.50-24	6	15	165	130	0	4	8
46	W8X24	9.50-24	6	20	165	120	42	4	8
47	W8X24	9.50-24	6	16	165	130	29	4	8
48	W9X20	11.2-20	6	16.5	28.5	250.5	104	4	7
49	W10X24	11.2-24	6	20	265	120	26	4	8
50	W10X24	11.2-24	6	19	203	152.4	8	4	8
51	W10X24	11.2-24	6	17	180	141	26	4	8
52	W10X24	12.4-48	8	16.5	330	290.5	82	4	9
53	W10X24	12.4-28	12	17	525	186	6	4	12
54	W10X24	12.4-28	8	16.5	330	290.5	61	4	9
55	W10X28	12.4-28	8	16.5	330	290.5	59.5	4	9
56	W10X28	12.4-28	8	20	152	110	84.5	4	10
57	W10X28	12.4-28	8	19	203.2	152.6	26	4	9
58	W10X28	12.4-28	8	18.8	203.2	152.6	26	4	9
59	W10X28	12.4-28	8	19.8	275	220	84	4.5	8
60	W10X32	12.4-32	8	20	200	150	96	4	8
61	W10X32	12.4-32	8	20	203.2	152.6	36.5	4	8
62	W10X32	12.4-32	8	20	203.2	152.6	71	4	10
63	W11X24	12.4-24	8	16.5	330	290.5	49	4	9
64	W11X28	12.4-28	8	18.8	203.2	152.6	50	4	9
65	W12X24	13.6-24	8	16.5	330	290.5	6	4	9
66	W12X24	13.6-24	8	19	203.2	152.6	51	4
67	W12X26	13.6-26	10	23	335	281.2	44.5	4	10
68	W12X28		8	24	250	199	95	4	9
69	W12X30	13.6-30	8	19	203.2	152.6	12.8	4	10
70	W12X30	13.6-30	8	19	203.2	152.6	30.5	4	0
71	W12X30	13.6-30	8	20	200	150.1	46	4	10
72	W12X32	13.6-32	8	20	200	150	30.5	4	8
73	W12X36	13.6-36	8	19.8	203.2	152.6	60	4	10
74	W12X38	13.6-38	8	19	203.2	150.1	111.2	5	0
75	W12X38	13.6-38	8	19	203.2	150.1	70	5	0
76	W13X26	14.9-26	8	17	330	290.5	6	4.5	9
77	W13X28	14.9-28	8	19	203.2	152.6	87.2	4	0

Item	Sizes	Suitable tire sizes	Attachment holes: quantity	Attachment holes: diameter	BCD	Centre hole diameter	Offset	Thickness: rim	Thickness: disc
78	W13X28	14.9-28	8	19	203.2	150.1	46	4	9
79	W13X28	14.9-28	8	20	200	150	46	4	9
80	W14LX24	16.9-24	8	32	210	145	116	5	4
81	W14LX24	16.9-24	8	32	210	145	60	5	2
82	W14LX30	16.9-30	8	19	203.2	150.1	26	5	0
83	W14LX34	16.9-38	8	19	203.2	152.6	30	5	2
84	W15LX38	16.9-38	8	19	203.2	150.1	108	5	2
85	W15LX38	18.4-30	8	19	203.2	150.1	180	5	2
86	W16LX30	18.4-30	8	20	200	150	12.5	5	2
87	W16LX30	18.4-30	8	19	203.2	150.1	20	5	0
88	W16LX38	18.4-38						5
89	2.15X12	3.50-12	3	8.4	254
90	2.50CX12	4.00-12	4	13	100	70	10.3
91	3.00DX12	4.00-12	4	13	100	74	3
92	3.00DX12	4.00-12	6	13	132	104	3
93	4.00EX12	5.00-12	4	14.5	102	61	3
94	4.50EX12	4.00-12	4	13	110	80	3
95	3.00DX14	4.00-12	4	13	100	74	19
96	3.00DX14	4.00-12	4	15	110	74	3
97	3.00DX14	5.00-12	5	15	140	110	14
98	3.00DX14	6.00-12	4	13	116	88	24
99	3.00DX14	4.00-14	6	13	132	104	20
100	14X41/2J	4.00-14	5	15	140	110	20
101	4.00EX15	4.00-14	5	16	140	94	20
102	3.00DX16	4.00-14	4	17	127	92.5	25
103	3.00DX16	4.00-14	5	15	140	96	30
104	4.00EX16	5.50-16	5	16	140	94	20
105	4.00EX16	5.50-16	5	20	140	94	27
106	4.50EX16	6.00-16	5	15	140	96	63
107	5.50FX16	7.50-16	6	17	180	141	18
108	5.50FX16	7.50-16	6	16	161	102	50
109	5.50FX20	7.50-20	5	19	175	135	25
110	5.50FX20	7.50-20	6	19	152	117.7	10
111	6.00FX20	7.50-20	6	17	180	141	22
112	6.00FX20	7.50-20	6	15	160	130	2
113	W7X20	8.30-20	5	17	140	93	40
114	W7X20	8.30-20	6	16	161	102	50
115	W8X20	9.50-20	6	16	165	130	19
116	W7X24	8.30-24	6	17	180	141	22
117	W8X24	9.50-24	6	19	200	125	85
118	W8X24	9.50-24	8	16.7	203.2	152.4	50.8
119	W10X24	11.2-24	8	18.8	203.2	152.6	29
120	W10X24	11.2-24	8	18.8	203.2	152.6	8
121	W13X26	14.9-26	8	17	330	290.5	6
122	W13X30	14.9-30	8	19	203.2	150.1	20

Item	Sizes	Suitable tire sizes	Attachment holes: quantity	Attachment holes: diameter	BCD	Centre hole diameter	Offset
123	W10X28	11.2-28	8	21	330	290	0
124	W10X28	11.2-28	8	18.8	203.2	152.6	29
125	W11X28	12.4-28	8	18.8	203.2	152.6	29
126	W15LX34	16.9-34	8	19	203.2	150.1	70
127	W15LX34	16.9-34	8	17	250	199	76.5
128	DW11X38	12.4-38	8	24	250	199	115
129	DW12X38	13.6-38	8	19	203.2	150.1	21.2
130	DW15X38	16.9-38	8	19	203.2	150.1	20
131	7.00-20	9.00-20	8	32	275	214	142.5
132	8.00V-20	11.0-20	10	27	335	281	161.5
133	8.00V-20	11.0-20	10	26	335	272	156.5
134	5.50F-16	6.50-16	6	20.5	190	140	102
135	5.50F-16	6.50-16	6	17	180	141	14
136	W12X24	13.6-24	8	16.7	203.2	152.4	0
