Fleet X OTR rims are manufactured per customer specific requirement.

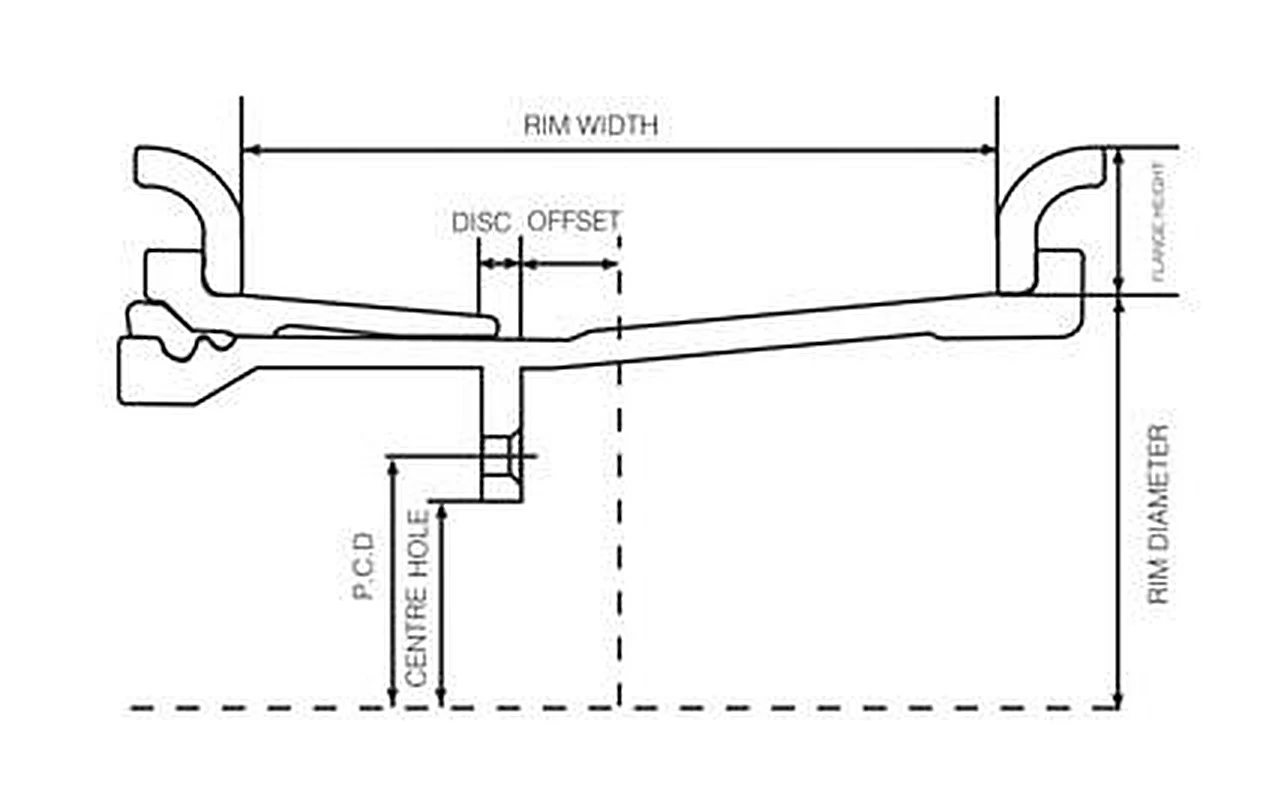

| Item | Sizes | Suitable tire sizes | Attachment holes: quantity | Attachment holes: diameter | PCD | Centre hole diameter | Offset | Thickness: rim | Thickness: disc | Vehicles |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 24-10.22/2.0(3PCS) | 14.00-24 | 10 | |||||||
| 2 | 24-10.22/2.0(3PCS-2) | 14.00-24 | 10 | 26 | 343 | 270 | -99 | 40 | ||
| 3 | 25-11.25/2.0(5PC) | 16.00-25 | 12 | 24 | 425 | 370 | 55 | 18 | ||
| 4 | 25-11.5/2.0(3PCS-1) | 16.00-25 | ||||||||
| 5 | 25-11.5/2.0(5PCS-10) | 16.00-25 | 12 | 485 | 425.8 | |||||
| 6 | 25-11.5/2.0(5PCS-11) | 16.00-25 | 10 | 32.5 | 335 | 275.8 | 0 | 22 | ||
| 7 | 25-11.5/2.0(5PCS-12) | 16.00-25 | 10 | 32.5 | 335 | 275.8 | 0 | 22 | ||
| 8 | 25-13.00/2.5(4PCS) | 18.00-25 | ||||||||
| 9 | 25-13.00/2.5(5PCS) | 18.00-25 | ||||||||
| 10 | 25-13.00/2.5(5PCS-1) | 18.00-25 | ||||||||
| 11 | 25-13.00/2.5(5PCS-10) | 18.00-25 | ||||||||
| 12 | 25-13.00/2.5(5PCS-11) | 18.00-25 | ||||||||
| 13 | 25-13.00/2.5(5PCS-12) | 18.00-25 | ||||||||
| 14 | 25-13.00/2.5(5PCS-16) | 18.00-25 | ||||||||
| 15 | 25-13.00/2.5(5PCS-17) | 18.00-25 | 10 | 31 | 480 | 435 | 65 | 15 | ||
| 16 | 25-13.00/2.5(5PCS-18) | 18.00-25 | ||||||||
| 17 | 25-13.00/2.5(5PCS-27) | 18.00-25 | ||||||||
| 18 | 25-13.00/2.5(5PCS-28) | 18.00-25 | ||||||||
| 19 | 25-13.00/2.5(5PCS-29) | 18.00-25 | ||||||||
| 20 | 25-15.00/3.0(5PCS-1) | 21.00-25 | ||||||||
| 21 | 25-15.00/3.0(5PCS-2) | 21.00-25 | ||||||||
| 22 | 25-15.00/3.0(5PCS-3) | 21.00-25 | ||||||||
| 23 | 29-17.00/3.0(5PCS) | 24.00-29 | ||||||||
| 24 | 29-17.00/3.5(5PC) | 24.00X29-42PR |
