Fleet X OTR rims are manufactured per customer specific requirement.

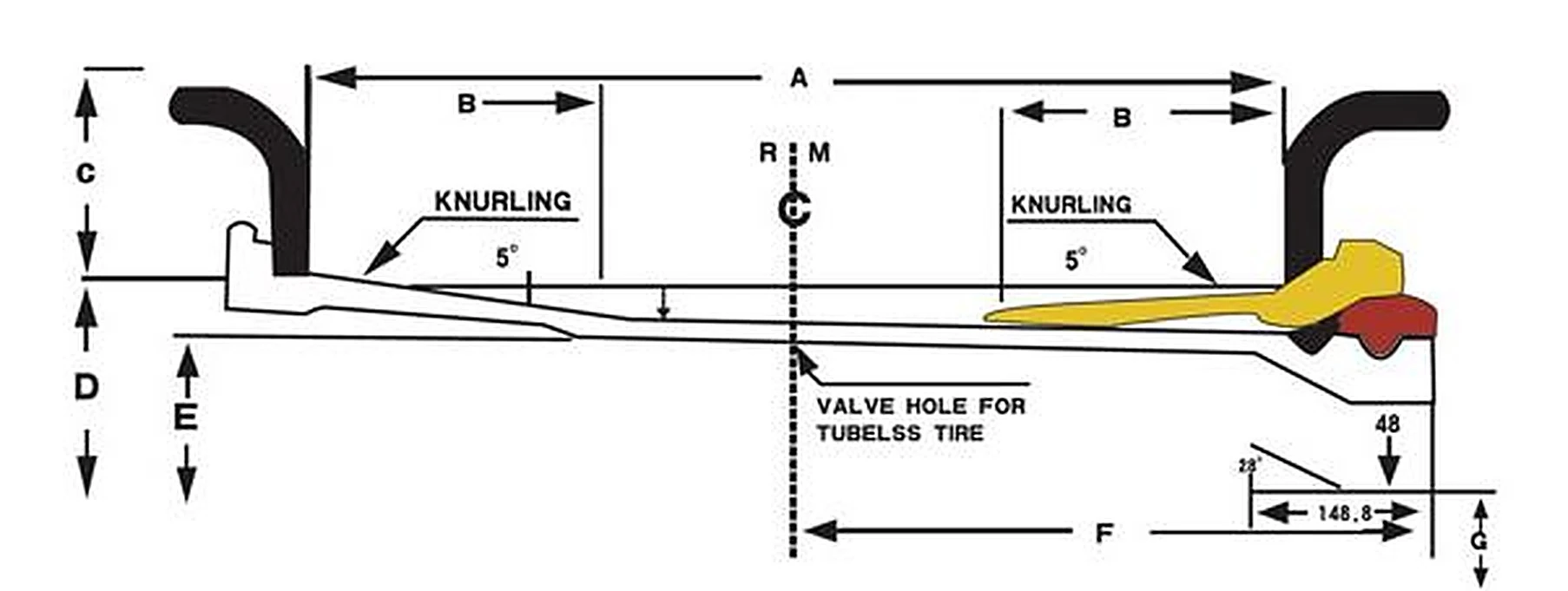

| Sizes | Suitable tire sizes | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Dimension G (mm) | Weight (kg) | Vehicles |
|---|---|---|---|---|---|---|---|---|---|---|
| 35X17.00/3.5 | 24.00-35 | 431.8 | 139.7 | 88.9 | 889 | 828.6 | 265.3 | 784.2 | 323 | |
| 45X17.00/3.5 | 45/65-45 | 914.4 | 139.7 | 114.3 | 1143 | 10826.6 | 1509.7 | 1017.6 | 737 | |
| 49X17.00/4.0 | 24.00R49 | 432 | 124 | 102 | 1244.6 | 1184 | 295 | 1114.2 | ||
| 49X19.50/4.0 | 27.00-49 | 495.3 | 139.7 | 101.6 | 1244.6 | 1184.2 | 300.2 | 1119.2 | 561 | CAT 777 |
| 51X22.00/4.5 | 30.00-51 | 558.8 | 190.5 | 114.3 | 1295.4 | 1212.6 | 379.5 | 1148.6 | 896 | |
| 51X24.00/4.5 | 33.00-51 | 609.6 | 190.5 | 127 | 1295.4 | 1212.6 | 404.9 | 1148.6 | 963 | CAT 785 |
| 51X26/5.0 | 36.00-51 | 660.4 | 190.5 | 127 | 1295.4 | 1212.6 | 430.3 | 1148.6 | 975 | 170 TONS |
| 51X40.00/4.5 | 50/65-51 | 660.4 | 190.5 | 114.3 | 1295.4 | 1212.6 | 608.1 | 1148.6 | 1108 | |
| 57X27.00/6.0 | 40.00-57 | 736.6 | 190.5 | 152.4 | 1447.8 | 1365 | 470 | 1301 | 1270 | CAT 789 |
| 57X27.00/6.0 | 37.00-57 | 658.8 | 190.5 | 152.4 | 1447.8 | 1365 | 430 | 1301 | 1251 | |
| 57X32.00/5.0 | 44/80R57 | 812.8 | 190.5 | 127 | 1447.8 | 1359 | 507 | 1299.4 | 1384 | |
| 57X32.00/6.0 | 46/90R57 | 812.8 | 190.5 | 152.4 | 1447.8 | 1365 | 512 | 1299.4 | 1402 | |
| 57X32.00/6.5 | 48/95R57 | 812.8 | 190.5 | 165.1 | 1447.8 | 1365 | 512 | 1299.4 | 1402 | |
| 57X34.00/6.5 | 50/90R57 | 863.6 | 190.5 | 165.1 | 1447.8 | 1365 | 534.4 | 1299.4 | 1637 | |
| 57X36.00/6.0 | 49.5/80-57 | 914.4 | 190.5 | 152.4 | 1447.8 | 1359 | 584.2 | 1299.4 | 1637 | |
| 57X44.00/5.0 | 55/80R57 | 1117.6 | 190.5 | 127 | 1447.8 | 1359 | 685.8 | 1299.4 | 1837 | |
| 57X44.00/6.0 | 55.5/80-57 | 1117.6 | 190.5 | 152.4 | 1447.8 | 1359 | 685.8 | 1299.4 | 1913 | |
| 57X47.00/5.0 | 60/85R57 | 1193.8 | 190.5 | 127 | 1447.8 | 1359 | 701 | 1301 | 1851 | |
| 57X47.00/6.0 | 58/85-57 | 1193.8 | 190.5 | 152.4 | 1447.8 | 1359 | 701 | 1301 | 1869 | |
| 63X36.00/5.0 | 53/80R63 | 914.4 | 190.5 | 127 | 1600.2 | 600.1 | 2856 | EH5000 | ||
| 63X41.00/5.0 | 55/80R63 | 1041.6 | 192 | 127 | 1600.2 | 661.8 | 2960 | |||
| 63X44.00/5.0 | 58/80R63 | 1117.6 | 190.6 | 127 | 1600.2 | 701.8 | 2926 |
