WHEEL OTR rim-Earthmover Rim OTR rim-20″-49″

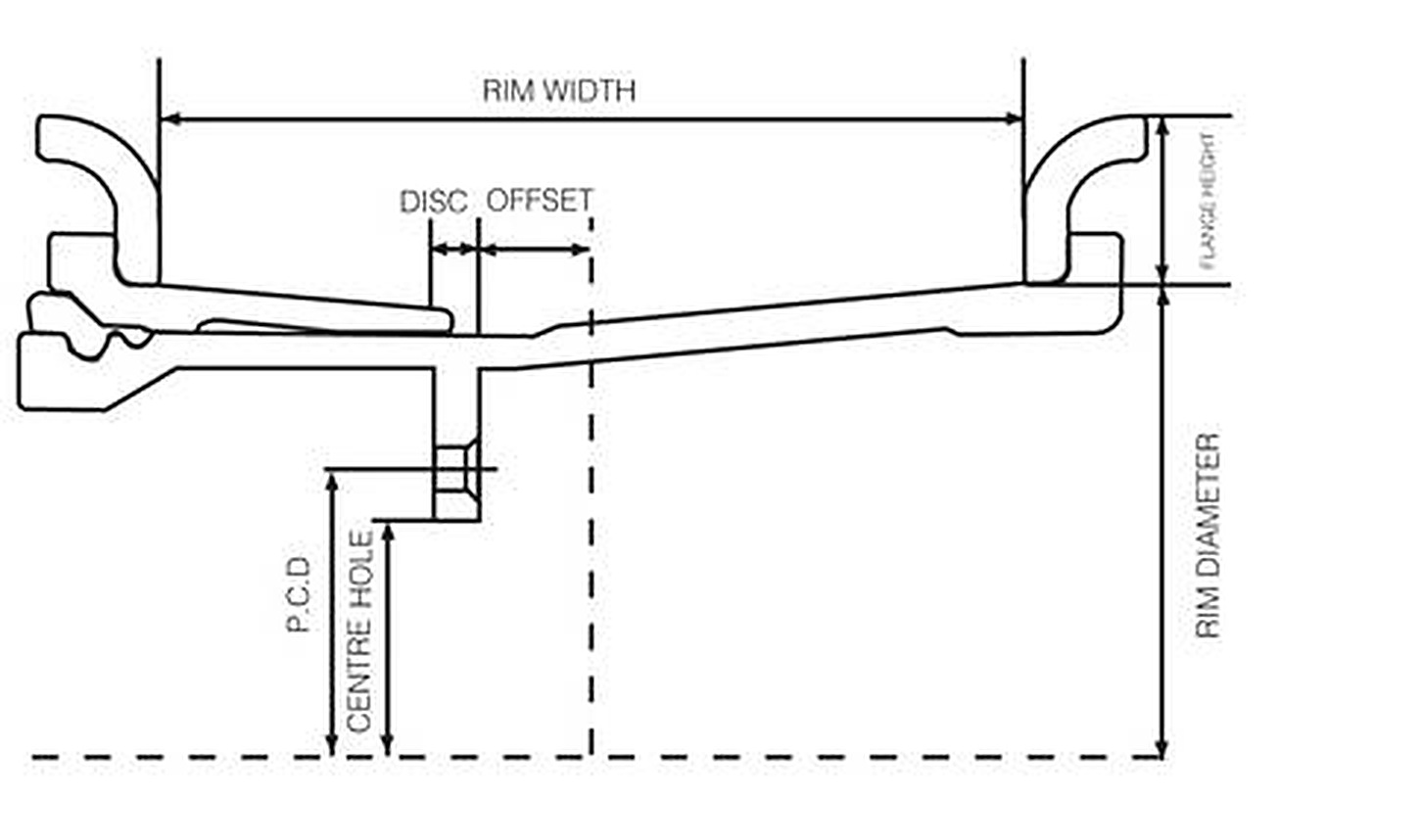

earthmover-rim-20-49-inch-drawing
earthmover-rim-20-49-inch

WHEEL OTR rim-Earthmover Rim OTR rim-20″-49″

Fleet X OTR rims are manufactured per customer specific requirement.

Enquire Now
Category

Additional information

Item Sizes Suitable tire sizes Attachment holes: quantity Attachment holes: diameter PCD Centre hole diameter Offset Thickness: rim Thickness: disc Vehicles
1 8.5-20TT(3PC) 12.00-20 8 24 415 317 40 12
2 20-10.00/2.0(3PCS-1) 12.00-20 24 20 375 330 61 22
3 20-10.00/2.0(3PCS-3) 12.00-20 10 26 281 76 24
4 20-10.00/2.0(3PCS-4) 12.00-20 10 27 335 280 100 20
5 20-11(3PC) 13-20 7 20 425 387 17 12
6 21-18.00/1.5(3PC) 24-21
7 22-14.00/1.7(5PC) 19.0-22 381 324 18 25
8 22-22.00/1.84(5PCS)
9 24-8.0(3PC) 13.00-24
10 24-8.0/1.7(3PCS) 12.00-24 10 32 286 222 126.5 12
11 24-8.0/1.7(3PCS-1) 13.00-24 12 22 275 221.5 -100 20
12 24-8.5(3PC) 12.00-24 10 26 335 281 190 14
13 24-8.5/1.7(3PCS) 12.00-24 26 335 281 162
14 24-8.5/1.7(3PC) 12.00-24
15 24-8.5/1.7(3PC-1) 12.00-24 10 20 512 454 -12.5 16
16 24-10VA 14.00-24
17 24-10.00W(3PC) 14.00-24 12
18 24-10.00VA(3PC) 14.00-24 8 25 425 371 237 18
19 24-10.00VA(3PC) 14.00-24
20 24-10.00/1.7(3PCS) 14.00-24 8 24 250 200 95 12
21 24-10.00/1.7(3PCS-3) 14.00-24 10 30 512 454 -112 14
22 24-10.00/1.7(3PCS-5) 14.00-24 16 24 290 235 55 16
23 24-13.00/2.0(3PCS) 18.00-24 10 22 480 405 90 15
24 24-13.00/2.0(3PCS-1) 18.00-24 10 27 480 420 20 15
25 25-9.5/1.7(3PC) 14.00-R25 10 26 335 281 94 20
26 25-10.00/1.3(3PC) 17.5-25 16 18 305 280 36 20
27 25-10.00/1.5(3PC) 17.5-25
28 25-11.00/1.7(3PC) 16.00-R25 10 26 335 281 95 16
29 25-11.00/1.7(3PC) 16.00-R25 10 26 335 281 95 16
30 25-11.00/1.7(3PC) 16.00-R25 10 26 335 281 110 14
31 25-11.00/1.7(3PC) 16.00-R25 10 26 335 281 145 14
32 25-11.00/1.7(3PC) 16.00-R25 10 27 335 280 95 20
Item Sizes Suitable tire sizes Attachment holes: quantity Attachment holes: diameter PCD Centre hole diameter Offset Thickness: rim Thickness: disc Vehicles
33 25-11.25/1.3(3PC) 16.00-25 10 23 335 281 125 15
34 25-11.25/2.0(5PC) 16.00-25 12 24 425 370 55 18
35 25-11.25/2.0(5PC) 16.00-25 16 21 400 350 11.75 25
36 25-11.25/2.0(5PC) 16.00-R25
37 25-11.25/2.0(5PC) 16.00-25
38 25-11.25/2.0(5PC) 16.00-25 12 23 455 415 108 30
39 25-11.25/2.0(5PC) 12.00-24 10 26 335 281 190 14
40 25-11.25/2.0(5PC) 16.00-25 20 17 350 320 10 12 25
41 25-11.25/2.0(5PC) 16.00-25 10 25 335 282 44 12 15
42 25-11.25/2.0(5PC) 16.00-R25
43 25-11.25/2.0(5PC) 16.00-25 10 26 335 281 145 12 14
44 25-12.00/1.3(3PC) 17.5-25 16 18 305 280 36 20
45 25-12.00/1.3(3PC) 15.5-25
46 25-12.00/1.5(3PC) 15.5-25 10
47 25-12.00/1.5(3PC) 15.5-25
48 25-12.00/1.5(3PC) 17.5-25
49 25-12.00/1.5(3PC) 17.5-25 16 18 305 280 36 20
50 25-13.00/2.5(5PC) 18.00-25 16 20 400 350 0 18
51 25-13.00/2.5(5PC) 18.00-25
52 25-13.00/2.5(5PC) 18.00-25 16 400 350 12 25
53 25-13.00/2.5(5PC) 18.00-25
54 25-13.00/2.5(3PC) 18.00-25 12
55 25-13.00/2.5(5PCS-8) 18.00-25 20 18 350 320 -48 25
56 25-13.00/2.5(5PCS-20) 18.00-25
57 25-14.00/1.5(3PC) 20.5-25 10
58 25-14.00/1.5(3PC) 17.5-25 10 27 335 281 35 10 16
59 25-14.00/1.5(3PC) 17.5-25 10 26 335 281 75 10 18
60 25-14.00/1.5(3PC) 17.5-25 16 22 400 350 15 10 16
61 25-14.00/1.7(3PC) 17.5-25 10
62 25-14.00/1.5(3PC) 20.5-25 10 27 335 281 37.8 10 16
63 25-14.00/1.3(3PC) 17.5-25 12 27 425 371 61 12
64 25-14.00/2.0(3PCS-A) 17.5-25
65 25-14.00/2.0(3PCS-A1) 17.5-25 12 24 404 352 12 12
66 25-14.00/2.0(3PCS-A2) 17.5-25 10 26 335 281 -40 14
67 25-14.00/1.5(3PC) 17.5-25 16 22 400 350 15 10 14.5
68 25-14.00/1.5(3PC) 17.5-25 10 26 335 281 7.5 10 14
69 25-14.00/1.5(3PC) 20.5-25 10 27 335 281 37.8 10 14
70 25-15.00/3.0(5PC) 23.5-25 24 24 425 371 16 20
71 25-15.00/3.0(5PC) 23.5-25
72 25-15.00/1.7(3PC) 23.5-25 10
73 25-15.00/3.0(5PC) 23.5-25 20 22 400 350.1 11 25
74 25-17.00/1.7(3PC) 20.5-25 12 20.6 513.08 468.6 17 10 18 CAT 966C
75 25-17.00/1.7(3PC) 20.5-25
76 25-17.00/1.7(3PC) 20.5-25 12 26 245 191 87.5 10 18 KAMATSU WA250
77 25-17.00/1.7(3PC) 20.5-25 15 26 254 191 0 10 20 KOMATSU WA320
Item Sizes Suitable tire sizes Attachment holes: quantity Attachment holes: diameter PCD Centre hole diameter Offset Thickness: rim Thickness: disc Vehicles
78 25-17.00/2.0(5PC) 20.5-25 12 24 415 370 103.9 15
79 25-17.00/1.7(3PC) 20.5-25 10 27 335 281 70 10 16
80 25-17.00/1.7(3PC) 20.5-25 10 26 335 281 35 10 20
81 25-17.00/2.0(5PC) 20.5-25
82 25-17.00/2.0(3PC) 20.5-25 12 27 425 371 45.8 10 16
83 25-17.00/2.0(3PC) 20.5-25 10 26 335 281 34 10 16
84 25-17.00/1.7(3PC) 20.5-25 10 27 335 281 40 10 22
85 25-17.00/2.0 20.5-25 10 25 335 282 64 12 15
86 25-17.00/2.0(3PCS-1) 20.5-25 10 27 480 405 0
87 25-17.00/2.0(3PCS-3) 20.5-25 12 23 404 352 68 15
88 25-17.00/2.0(3PCS-A) 20.5-25 12 27 480 405 49 15
89 25-17.00/2.0(3PCS-A1) 20.5-25 10 27 480 405 0
90 25-17.00/2.0(3PCS-A2) 20.5-25 12 24 425 370 57.5 14
91 25-17.00/2.0(3PCS-A3) 20.5-25 12 23 500 352 63 15
92 25-17.00/2.0(3PCS-A4) 20.5-25 12 24 480 435 57.5 14
93 25-17.00/2.0(3PCS-A5) 20.5-25 12 22 404 352 40 15
94 25-17.00/2.0(3PCS-A6) 20.5-25 10 22 480 405 100 15
95 25-17.00/2.0(4PCS) 20.5-25 10 27 480 405 49 15
96 25-17.00/2.0(5PCS-3) 20.5-25 10 27 480 405 49 15
97 25-17.00/2.0(5PCS-4) 20.5-25
98 25-17.00/1.7(3PC) 20.5-25 12 27 425 371 45.8 10 14
99 25-19.50/2.5(3PCS-A) 23.5-25 12 21.5 520 465 49 15
100 25-19.50/2.5(3PCS-A1) 23.5-25 10 27 480 405 49 15
101 25-19.50/2.5(3PCS-A2) 23.5-25 10 27 480 405 -50.5 15
102 25-19.50/2.5(3PCS-A3) 23.5-25 12 27 425 370 -5 15
103 25-19.50/2.5(3PCS-A4) 23.5-25 12 27 425 371 26 15
104 25-19.50/2.5(3PCS-A5) 23.5-25 10 27 480 420 4 15
105 25-19.50/2.5(3PCS-A6) 23.5-25 12 24 425 370 -67.5 15
106 25-19.50/2.5(3PCS-A7) 23.5-25 12 27 425 371 -50 15
107 25-19.50/2.5(3PCS-A8) 23.5-25 10 27 480 420 0 15
108 25-19.50/2.5(3PCS-A10) 23.5-25 10 27 480 420 4 16
109 25-19.50/2.5(4PCS) 23.5-25 12 21.5 290 465 59 15
110 25-19.50/2.5(4PCS-1) 23.5-25 12 27 425 370.8 10 15
111 25-19.50/2.5(5PCS-2) 23.5-25 12 24 480 370 67.5 16
112 25-19.50/2.5(5PCS-6) 23.5-25 12 24 350 435 57.2 14
113 25-19.50/2.5(5PCS-7) 23.5-25 12 22 404 352 40 15
114 25-19.50/2.5(5PCS-8) 23.5-25 12 23.5 425 370 -4 15
115 25-19.50/2.5(5PC) 23.5-25
116 25-19.50/2.5(3PC) 23.5-25
117 25-19.50/2.5(5PC) 23.5-25 16 24 522 472 70 20
118 25-19.50/2.5(5PC) 23.5-25 19 27 500 449 125 12 16
119 25-19.50/2.5(5PC) 23.5-25 19 24 500 449 85 12 16
120 25-19.50/2.5(5PC) 23.5-25 24 21 455 410 0 22
121 25-19.50/2.5(5PC) 23.5-25 2 26 425 371 90 16
122 25-19.50/2.5(5PC) 23.5-25 16 20.5 513.08 461.5 67.3 12 20 CAT 950
Item Sizes Suitable tire sizes Attachment holes: quantity Attachment holes: diameter PCD Centre hole diameter Offset Thickness: rim Thickness: disc Vehicles
123 25-19.50/2.5(5PC) 23.5-25
124 25-19.50/2.5(5PC) 23.5-25 18 26 320 266 40 20 KOMATSU WA380
125 25-19.50/2.5(5PC) 23.5R25 12 26 425 371 90 18
126 25-19.50/2.5(5PC) 23.5-25 16 21 400 350 10.5 12 25
127 25-19.50/2.5(5PC) 23.5-25 24 21 455 410 10.5 12 25
128 25-19.50/2.5(5PC) 23.5-25 24 21 455 410 22 25
129 25-19.50/2.5(5PC) 23.5-25 19 224 500 449 85 12 18
130 25-19.50/2.5(5PC) 23.5-25 19 27 500 449 125 12 18
131 25-19.50/2.5(5PC) 23.5-25 10 25 335 281 40 12 22
132 25-19.50/2.5(5PC) 23.5-25
133 25-19.50/2.5(5PC) 23.5R25 16 20.6 515 474.5 123 16
134 25-19.50/2.5(5PC) 23.5R25 12 26 425 372 90 18
135 25-19.50/2.5(5PC) 23.5-25 16 24 522 472 70 20
136 25-22.00/3.0(5PC) 26.5-25
137 25-22.00/3.0(5PC) 26.5-25 31 22 490 450 233 12 20 KOMATSU WA500
139 25-22.00/3.0(5PC) 26.5-25 25 22 494 454 25 12 19 KOMATSU WA470
140 25-22.00/3.0(5PC) 26.5-25 20 26 425 370 7 12 22
141 25-22.00/3.0(5PC) 26.5-25 24 25.5 500 477 0 12 25 VOLVO L150-180
142 25-22.00/3.0(5PC) 26.5-25 25 22 494 454 50 12 19 KOMATSU WA470-3
143 25-22.00/3.0(5PC) 26.5-25 24 21 455 410 11 12 25
144 25-22.00/3.0(5PC) 26.5-25 16 21 400 350 11 12 25
145 25-22.00/3.0(5PC) 26.5-25 24 21 455 410 0 12 25
146 25-22.00/3.0(5PC) 26.5-25 19 27 500 450 186 12 18
147 25-22.00/3.0(5PC) 26.5-25 26 25.4 485 430.3 269.8 12 33
148 25-22.00/3.0(5PC) 26.5-25 24 22 455 410 50 12 28
149 25-22.00/3.0(5PC) 26.5-25 10 26 335 281 0 12 18
150 25-22.00/1.84(5PCS) 26.00-25
151 25-22.00/1.84(5PCS-1) 12 24 425 373 159.5 24
152 25-22.00/2.0(5PCS-5) 26.00-25
153 25-22.00/3.0(5PCS)
154 25-22.00/3.0(5PCS) 29.50-25 19 32 500 448 206 25
155 25-22.00/2.5(5PCS) 26.00-25
156 25-22.00/3.0(5PC) 26.5-25 19 27 500 450 186 12 16
157 25-22.00/3.0(5PC) 26.5-25 24 21 455 410 0 22
158 25-22.00/3.0(5PC) 26.5-25 25 22 494 454 50 16
159 25-25.00/3.5(5PC) 29.5-25 12 26 425 371 90 18
160 25-25.00/3.5(5PC) 29.5-25
161 25-25.00/3.5(5PC) 29.5-25 24 21 455 410 9.5 22
162 25-25.00/3.5(5PC) 29.5-25 19 27 500 449 216 18
163 25-25.00/3.5(5PC) 29.5-25
164 25-25.00/3.5(5PC) 29.5-25 10 26 335 281 70 22
165 25-25.00/3.5(5PC) 26.5-25 26 25.4 484 430.3 307.9 12 CAT 980G/H
166 25-25.00/3.5(5PC) 29.5-25 23 20.5 515 475 17 16 CAT 740/D400
167 25-25.00/3.5(5PC) 29.5-25
168 25-25.00/3.5(5PC) 29.5-25 10 26 335 281 0 12 30
Item Sizes Suitable tire sizes Attachment holes: quantity Attachment holes: diameter PCD Centre hole diameter Offset Thickness: rim Thickness: disc Vehicles
169 25-25.00/3.5(5PC) 29.5-25 19 27 500 451.5 54 18
170 26-20.00/1.1(2PCS) 23.1-26 12 24 425 370 -67.5 16
171 26-20.00/1.1(2PCS-1) 23.1-26 12 24 480 425 -32 16
172 26-20.00/1.1(2PCS) 23.1-26 12 24 480 435 -82.5 16
173 26-20.00/1.1(3PCS-1) 23.1-26 12 27 425 371 26 14
174 26-20.00/1.1(3PCS-2) 23.1-26 12 21.5 520 465 -35.5 12
175 26-20.00/1.1(3PCS-3) 23.1-26 12 24 425 370 -67.5 16
176 26-20.00/1.1(3PCS-4) 23.1-26 8 22 275 220.8 0 16
177 26-20.00/1.1(3PCS-5) 23.1-26 8 24 203.2 152.8 -29 10
178 26-20.00/1.1(3PCS-6) 23.1-26 22 475 420 -87.5 16
179 26-20.00/1.1(3PCS-7) 23.1-26 24 455 400 -74 12
180 26-20.00/1.1(3PCS-8) 23.1-26 12 22 425 370 0 16
181 26-20.00/1.1(3PCS-9) 23.1-26 12 24 480 435 -57.5 16
182 26-20.00/1.1(3PCS-10) 12 24 425 370 -57.5 16
183 26-20.00/1.1(3PCS-11) 23.1-26 12 24 425 370 -92.5 16
184 26-20.00/1.1(3PCS-12) 23.1-26 8 23.5 425 370 0 18
185 26-20.00/1.1(3PCS-13) 23.1-26 10 24 203.2 152.4 -29 12
186 26-20.00/1.1(3PCS-14) 23.1-26 12 27 335 282 -80 16
187 26-20.00/1.1(3PCS-15) 23.1-26 12 27 480 420 11 16
188 26-20.00/1.1(3PCS-16) 23.1-26 10 24 480 435 29 12
189 26-20.00/1.1(3PCS-18) 23.1-26 10 27 425 436 60 12
190 26-25.00/1.1(3PCS) 28I-26 10 27 480 420 -32 15
191 26-25.00/1.1(3PCS-1) 28I-26 10 27 480 420 -32 15
192 29-25.00/3.5(5PC) 29.5-25
193 29-25.00/3.5(5PC) 29.5-29 24 23 500 449.3 54 18
194 29-25.00/3.5(5PC) 29.5-29 36 21 598 558 31.3 14 34 R2900
195 29-25.00/3.5(5PC) 29.5-29 24 24 570 530.2 108.3 14 32 AD40
196 29-25.00/3.5(5PC) 29.5-29 36 21 582 518 14 33 AD45B
197 29-25.00/3.5(5PC) 33.00-29 12
198 29-17.00/3.5(5PC) 24.00X29-42PR 12
199 33-13.00/2.5(5PCS-2) 18.00-33
200 33-13.00/2.5(5PCS-3)
201 33-13.00/2.5(5PCS) 35/36-33 31 24 69.3 616 314.1 32
202 33-13.00/2.5(5PC) 29.5-25 546 12 36
203 33-13.00/2.5(5PC) 18.00R33 12 36 660 14 32 CAT 769
204 33-13.00/2.5(5PC) 18.00-33 12
205 33-13.00/2.5(5PC) 18.00-33 16 22 400 350 0 12 25
206 33-13.00/2.5(5PC) 18.00-33 12 28 595 546 130 25
207 33-13.00/2.5(5PC) 18.00-33 20 17.5 350 320 0 12 25
208 33-13.00/2.5(5PC) 18.00-33 600 546 188.6 12 25
209 33-28.00/3.5(5PC) 35/65-33
210 33-28.00/3.5(5PC) 35/65-33 38 26 605 553 110 14 32
211 33-28.00/3.5(5PC) 35/65-33 38 25.4 660 611 14 36 WA600-6
212 33-28.00/3.5(5PC) 35/65-33 37 25.4 660 611 14 32 L350F
213 33-28.00/3.5(5PC) 35/65-33 31 26 550 500 14 28 WA600-3
Item Sizes Suitable tire sizes Attachment holes: quantity Attachment holes: diameter PCD Centre hole diameter Offset Thickness: rim Thickness: disc Vehicles
214 33-28.00/3.5(5PC) 35/65-33 38 26 693 617 14 40 CAT 998G
215 33-28.00/3.5(5PC) 35/65-33 38 26 692 617.65 14 40 AD55
216 33-28.00/3.5(5PC) 35/65-33 36 21 598 558 33.8 14 36 P3900EXTRA
217 33-28.00/3.5(5PC) 35/65-33 31 26 550 500 251 12 28 WA600
218 33-28.00/3.5(5PC) 35/65-33 38 26 693 617 14 40 CAT 988G
219 33-28.00/3.5(5PC) 18.00-33 12
220 34-16.00/1.5(5PCS)
221 34-17.00/3.5(5PCS) 24.00-35
222 35-15.00/3.0(5PC) 21.00-35
223 35-15.00/3.0(5PC) 21.00-35 24 21 455 410 13.5 14 30
224 35-15.00/3.0(5PC) 21.00-35 24 21 510 460 14 14 30
225 35-15.00/3.0(5PC) 21.00-35 16 22 400 350 12 14 25
226 35-15.00/3.0(5PC) 21.00-35 12 32 710 659 110.5 14 40
227 35-15.00/3.0(5PC) 21.00-35 12 32 710 659 110.5 14 35
228 35-17.00/3.5(5PC) 24.00-35 14
229 35-17.00/3.5(5PC) 24.00-35 24 22 510 460 14 14 30
230 35-17.00/3.5(5PC) 24.00-35 24 21 510 460 14 14 30
231 35-17.00/3.5(5PC) 24.00-35 29 26 610 539 35.5 14 30
232 35-17.00/3.5(5PC) 24.00-35-36PR 14 36 704.85 644.7 16 32 KOMATSU 465-7
233 35-17.00/3.5(5PC) 24.00-35-36PR 14 36 704.85 644.7 16 32 CAT 773B
234 35-17.00/3.5(5PC) 21.00-35 12 32 710 659 156 35
235 35-17.00/3.5(5PC) 24.00-35 24 21 510 460 0 14 28
236 35-28.00/3.5(5PC) 35/36-33 16
237 36-18.00/2.0(5PCS)
238 36-20.50/1.3(5PCS)
239 42-16.00/2.5(5PCS)
240 42-19.50/4.0(5PC) 27.00-49 36 20 500 460 0 14 35
241 49-19.50/4.0(5PC) 27.00R49 38 26 600 542 12.5 14 35
242 49-19.50/4.0(5PC) 27.00-49 36 20 500 460 14 35
243 49-19.50/4.0 27.00-49 14
244 49-19.50/4.0(5PC) 27.00-49 18 32 1030 960 180 16 45
245 49-19.50/4.0(5PC) 27.00-49 20 36 1035 975 38 16 28 CAT 777
246 49-19.50/4.0(5PC) 27.00-49 KOMATSU 785-5
247 49-19.50/4.0(5PC) 27.00-49 20 36 1035 975 68 16 32 KOMATSU 785-7
Tech Link Industries
Techlink Industries Corporation and FleetX Heavy Duty Parts is the leading supplier of wheel-end products and components to the global commercial vehicle markets.

Useful Links

Get In Touch

905-737-4060

sales@fleetxparts.com

55 Braehead Drive Richmond Hill, Ontario L4E 0B3 Canada

Facebook Instagram Youtube Linkedin X-twitter
© 2026 Techlink Industries. All rights reserved.
